600 watts a cavallino tipo tavolo da tavolo da tavolo da taglio

(ADW-LC600) 600 watts Tipo di tipo di taglio del tavolo da taglio del taglio con velocità di taglio rapida, circa 40-45 metri/ora 18 mm in compensato; Alta precisione e precisione di taglio è +-0,05 mm; Taglio liscio, taglio laser CNC CO2; Rumore inferiore. China Adewo ha avuto successo per molte imprese nazionali ed straniere per fornire una macchina da taglio laser avanzata, macchina per bender automatica, piegatrice di taglieri, supporto tecnico e un eccellente servizio di vendita.

Modello:ADW-LC600

Invia richiesta

Descrizione del prodotto

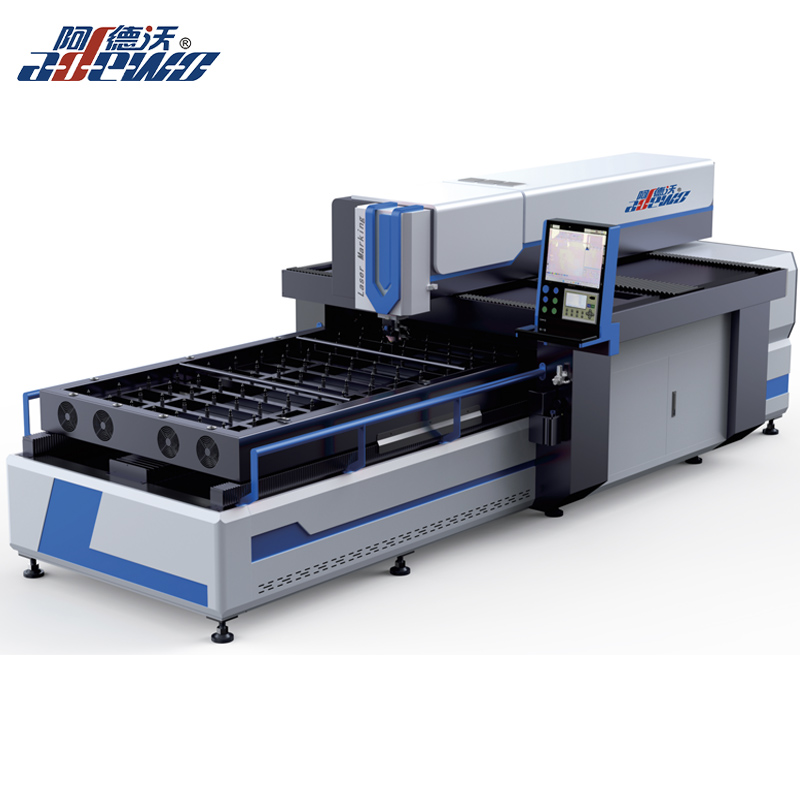

600 Watts Gantry Type Mould Board Laser Cutting Machine

As a professional high quality 600 Watts Gantry Type Mould Board Laser Cutting Machine manufacture, you can rest assured to buy 600 Watts Gantry Type Mould Board Laser Cutting Machine from our factory and we will offer you the best after-sale service and timely delivery.The company has always been oriented by customer demand and respect for talents, constantly improve their strength, improve service level and quality. With many European and American, Asian and domestic customers, we have established long-term good relationship with common progress. Sincerely expect to join hands with you to create the future.

1.Product Features:

1.Constant optical path, improve the stability, and ensure the cutting gap uniform, more simple to install rule.

2.Easy operation; Automatic adjustment of cutting gap, 1pt,2pt,3pt,4pt cutting once time. The machine software is compatible with CAD, CDR and Al.

3.High quality of imported guide rail, precision ball screw and other main accessories to ensure thelonger life of the machine using.

4.Wide application:6-25mm plywood, acrylic, and less than 3mm steel (Need oxygen).

2.Technical Parameters of 600 Watts Gantry Type Mould Board Laser Cutting Machine

Model No.	ADW-LC600
Laser power	600W Single head
Working area	Width 1225mm x Length2440mm
Driving style	Laser head moved
Cutting speed	600watts:40-45 meters/hour,18mm plywood
Cutting materials and thickness	6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.
Cooling water temperature	5℃-30℃

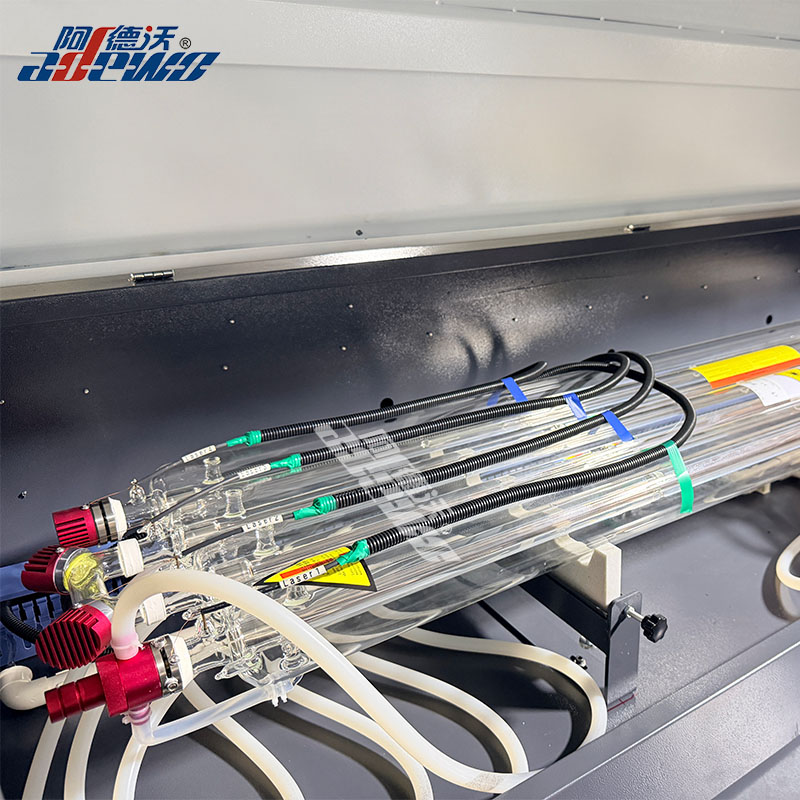

Laser type	CO2 sealed of glass laser
Driving system	Servo motor system

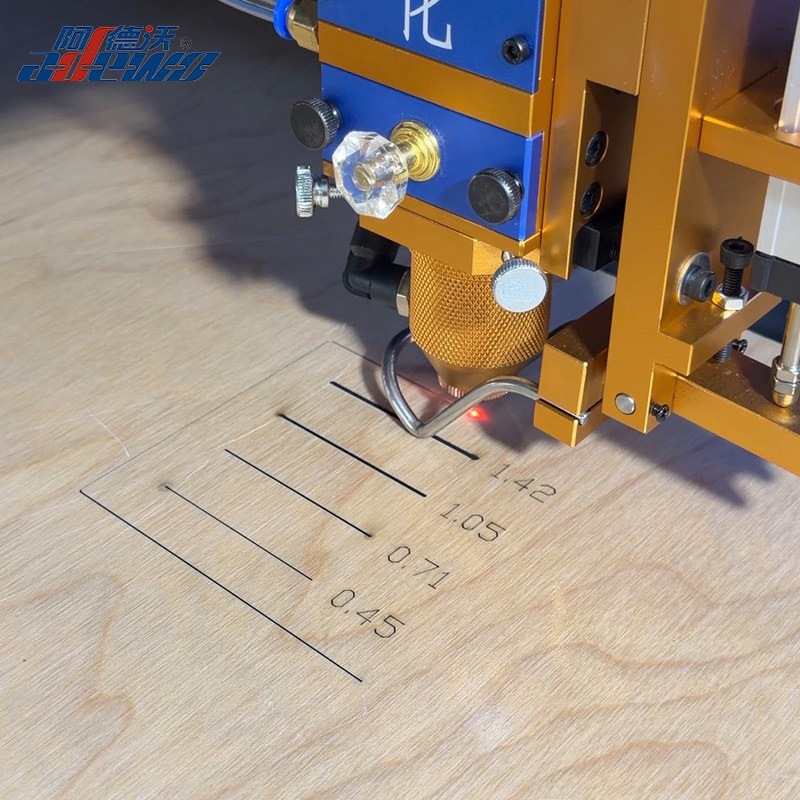

Blade thickness	0.45mm,0.71mm,1.05mm,1.07mm…ect
Cutting precision	±0.05mm
Figure format	AL, DST, PLT, BMP, DXF
Supporting software	CorelDraw,AutoCAD,photoshop
Cooling system	Water cooling
Operating temperature	1℃~40℃
Numerical control panel	LCD screen,Light-touched key-press off-line condition
EMS memory	Attached 32MB memory, can work under off-line condition
Assistant equipments(Free)	Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter
Power supply	Single Phase 220V,50Hz/60Hz 10A
Total power	5KW
Machine size（stand still）	L4120xW2800xH1530mm
Machine size（working）	L4320xW3880xH1530mm
Machine weight	1800kg
H.S. Code	8456110090

3.FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 600 Watts Gantry Type Mould Board Laser Cutting Machine?
10-15 working days.

4.How about installation and training of 600 watts Gantry Type Die Boards Die Making Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.What’s the cutting speed of this 600 Wattd Gantry Type Mould Board Laser Cutting Machine?
40–45 meters/hour 18mm plywood by 600 Watts Gantry Type Mould Board Laser Cutting Machine; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
